You walk into the laundry room and notice a small red light blinking on your water heater’s power cord. Maybe it’s been doing that for weeks. Or maybe it just started after a storm. Either way, that flickering red LED isn’t just a design quirk – it’s trying to tell you something. Most water heaters with a cord-mounted indicator use that LED to show power status or fault conditions. A steady red light usually means normal operation. A flickering red LED water heater cord, however, points to a problem you should not ignore.
This article will walk you through the most common causes of that flicker: loose connections, voltage drops, bad earth circuits, and failing internal components. You’ll learn how to tell which one you’re dealing with, when you can fix it yourself, and when to call a pro. I’ll also explain how a simple prewired flicker LED (yes, the kind used in hobby projects) can actually help you test circuits safely, and where that approach falls short.
EDGELEC

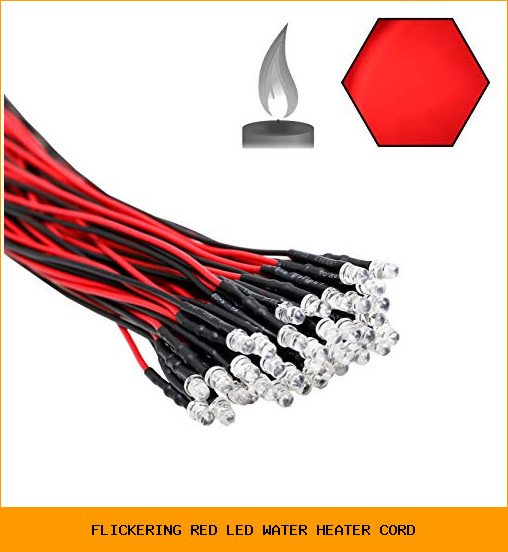

EDGELEC 30pcs 12 Volt 3mm Red Flicker LED Lights Emitting Diodes (Candle Flickering Lights) Pre Wired 7.9 inch DC 12v LED Light Clear Lens Small LED Lamps
- Prewired with built in Resistor, 20000 hours+ Lifespan.
- Product Overview: 30pcs Pre-wired 3mm Flickering Red LED - Candle Flickering Lights - 3mm Clear Lens
- Product Features: Prewired LED For DC 12V (Preloaded 1/4w Metal Film Resistor) - 7.8 inch Wire Lead (7-Core Pure Copper & Tin-Coat…
No fluff. No vague warnings. Just the numbers and steps you need to get that water heater back to steady status.
If you’re into DIY electronics or just need a cheap way to simulate a flickering indicator for testing, the EDGELEC 30pcs 12 Volt 3mm Red Flicker LED Lights come prewired with a built-in resistor for 12V DC. They’re not designed for water heater repairs, but they work great for breadboard diagnostics or as a visual indicator on low-voltage control circuits. Pop one into a circuit to see if a signal is present – just don’t hook them up to mains voltage.
What That Flickering LED Actually Means
The LED on your water heater cord is almost always part of a simple indicator circuit. It connects across the incoming power lines (line and neutral) or between a control board output and ground. A steady glow means voltage is present and stable. A flicker means the voltage is fluctuating or the circuit is intermittent.
Here are the three most common electrical reasons for the flicker, ranked by frequency of occurrence:
- Loose wiring inside the cord cap or junction box. This is the #1 culprit. A screw terminal not fully tightened, a wire pushed too far back in a wire nut, or a cracked solder joint on the LED leads. As the wire heats and cools, the connection makes and breaks, causing the LED to blink.
- Voltage drop from high load. When the water heater’s heating elements kick on (pulling 18 to 24 amps depending on model), poor supply wiring or a long extension cord can cause the voltage to sag below 110V. The LED dims or flickers momentarily. Once the element cycles off, voltage recovers and the LED steadies.
- Bad earth/ground connection. Some water heater cords use a two-wire LED (line and neutral). But if the cord has a ground pin and the LED circuit references ground, a corroded or broken earth bond can cause erratic behavior. This is dangerous – a faulty ground leaves you with no protection against a live chassis.
Less common: a failing control board on an electronic thermostat (common in newer gas heaters) where a capacitor leaks and sends ripple voltage to the LED driver.
How to Diagnose the Flicker Yourself
Before you touch anything, unplug the water heater or flip the circuit breaker. This is 120V or 240V AC. It will kill you if you screw up. I mean that. Work with one hand behind your back if you’re near live terminals.
Once the power is off, pull the cord cap or open the junction box where the cord meets the water heater. Look for:
- A wire nut that’s loose enough to twist by hand (tighten it with pliers).
- A single strand of copper wire sticking out past the screw terminal (trim it back).
- Black or green crust around a connection – that’s corrosion from moisture. Cut back to clean copper and remake the joint.
- A cracked LED lens or broken lead wires where they enter the plastic housing. If the LED itself is physically damaged, replace the whole cord assembly (not just the diode, because the resistor and insulation are part of the safety rating).
If nothing looks loose, the next step is a voltage log. Get a multimeter set to AC volts. Plug the water heater in (or turn the breaker on) and clip the meter probes across the LED’s supply terminals. Watch the display while the heater cycles. If the voltage drops by more than 10% (below 108V on a 120V circuit) when the element turns on, you have a supply problem. Check the breaker rating and the wire gauge feeding the outlet. Most water heaters need a dedicated 20A circuit with 12AWG copper wire minimum. Anything smaller will cause voltage drop.
| Voltage at LED while heating element is OFF | Voltage while heating element is ON | Likely cause | Action |
|---|---|---|---|
| 120-125V steady | 115-125V steady | Normal operation | No issue |
| 120-125V steady | drops to 105-114V | Undersized wiring or long run | Upgrade circuit or reduce load |
| 120-125V steady | drops below 105V | Bad connection at panel or outlet | Inspect breaker, outlet, and splice |
| Fluctuates 5-10V randomly with no load change | Same | Loose neutral in the house | Call an electrician urgently |
| 0V or very low (LED off/dim) | 0V | Dead LED driver or open circuit | Replace cord assembly |
When to Replace vs. Repair the Cord
Water heater power cords are often molded assemblies with no user-serviceable parts. The LED and its current-limiting resistor are potted in epoxy inside the cord cap. You can’t replace just the LED without cutting the cord and splicing – and that voids any UL listing. If the cord itself tests fine (continuity, insulation resistance >1MΩ) but the LED flickers due to a bad solder joint inside the cap, you have to decide: do I cut it open and solder a new LED, or buy a new cord?
I’ve done both. Cutting open a cord cap is messy. The epoxy is hard like plastic. A Dremel with a cutting wheel works. Inside you’ll find a small resistor (typically 4700Ω to 10kΩ for 120V) in series with the LED. Replace the LED with a standard 5mm red LED (not a flicker type) rated for at least 20mA. The EDGELEC flicker LEDs I mentioned earlier are designed for 12V DC, not for mains voltage. Do not use them in a 120V cord. They’ll blow instantly. But if you’re building a low-voltage test circuit to simulate the water heater’s indicator, those prewired LEDs are perfect. They include a 1/4W resistor already, so you just connect red wire to positive and black to negative on a 12V DC supply. The flicker effect mimics what a bad connection looks like – great for training or testing a relay logic board.
My honest opinion: for a water heater cord in a home, replace the whole cord. They cost $10-20 on Amazon. The time and risk of hacking the cap isn’t worth it. But if you’re repairing a commercial unit (like a large tank with a specialized cord that costs $80), then soldering in a new LED is a valid choice.
One subtle point: some modern water heaters have a smart LED that blinks error codes (e.g., 3 blinks = thermostat failure, 5 blinks = element burnout). Check your model’s manual. A steady flicker that’s rhythmic might be a code, not a bad connection. Count the flashes and look up the manual.
Safety First: Grounding and the Flicker
A flickering red LED can also indicate a poor ground path. Here’s why that matters: the indicator circuit in many cords is wired between the line conductor and the ground wire (not the neutral). This is common on two-prong polarized cords where the LED sees 120V between hot and ground. If the ground path is high resistance (corroded ground rod, broken wire in the cord, loose ground screw in the outlet), the LED will dim or flicker because it’s completing a circuit through a poor conductor.
This is dangerous. The ground wire is supposed to be a low-impedance path to trip the breaker during a fault. If the ground connection is bad enough to make an LED flicker, it’s too bad to protect you. Test the ground with a multimeter: set to ohms, measure between the ground pin on the plug and a known good earth (like a cold water pipe). You should see less than 25 ohms. If it reads 100 ohms or OL (open line), fix the ground before worrying about the LED.
Pro tip: you can use one of those prewired EDGELEC flicker LEDs (again, only on low-voltage DC) to build a quick continuity tester. Clip the red wire to a suspect ground wire, the black to a known good ground, and power with a 12V battery. If the LED flickers, the ground has high resistance. This is way faster than dragging out a multimeter for rough checks.
Frequently Asked Questions
Is a flickering red LED on a water heater cord an emergency?
Not immediately, but it’s a sign of an electrical fault that can escalate. If the flicker is due to a loose connection, that connection can overheat and start a fire. If it’s due to a bad ground, you lose shock protection. Treat it with moderate urgency – don’t ignore it for months. Unplug the heater until you diagnose the cause.
Can I replace just the LED in the cord?
Yes, but it requires cutting open the molded cap, desoldering the old LED, and soldering a new one. You’ll need a replacement LED that can handle the AC voltage (use a standard 5mm LED with a series resistor appropriate for your mains voltage – 120V AC typically needs a 4700Ω 1/2W resistor). The EDGELEC flicker LEDs are for 12V DC only – not suitable for this. Most people are better off buying a new cord.
My water heater cord has a steady red light that sometimes flickers when it rains. What does that mean?
Moisture is getting into a connection. Inspect the outlet for signs of water ingress (rust on screws, discolored plastic, or a damp wall). Check the cord cap for cracks or missing gaskets. A flicker that correlates with rain almost always means a wet junction. Dry everything with a hair dryer (on cool setting) and seal the cord entry with silicone caulk or a weatherproof cover.
What does it mean if the red LED is completely off?
No power to the indicator. Either the cord is not plugged in, the breaker is tripped, the LED burned out, or the internal resistor opened. Check the outlet with a known working device (like a lamp). If the outlet has power, the cord likely has an open circuit. Replace the cord assembly.
Can I use a flicker LED from a hobby pack to replace the water heater indicator?
Only if you build a proper voltage divider circuit for AC mains. The EDGELEC flicker LEDs and similar prewired diodes are designed for 12V DC. Hooking one to 120V AC will destroy it instantly. If you want a flicker effect for a low-voltage test jig (say you’re simulating a bad connection), those prewired LEDs work great – just keep them on a 12V bench supply.
What to Do Next: Quick Actions
- Unplug the water heater and inspect all connections in the cord cap and junction box. Tighten any wire nuts or screws that feel loose.
- Measure the voltage at the outlet while the heater runs. If it drops below 110V, the circuit is undersized or has a bad splice.
- Test the ground continuity from the plug’s ground pin to a known earth. More than 25 ohms means fix the ground.
- If the flicker is rhythmic and repeats a pattern (e.g., 3 flashes, pause, 3 flashes), look up the error code for your specific water heater model.
- If you need a spare cord because the old one is damaged, buy a replacement rated for the heater’s wattage (typically 18/3 SJTOW for 120V 1500W, or 14/3 for 240V).
- For low-voltage troubleshooting or hobby projects, grab a pack of prewired 12V flicker LEDs like the EDGELEC set. They’re cheap, include resistors, and make quick work of diagnosing intermittent signals on control boards.
- Never bypass or remove the LED indicator. It’s cheap insurance that tells you the heater has power. A missing LED makes it easy to forget the unit is still plugged in.
