Wiring an External Digital Controller for a 240V Sauna Heater
Imagine stepping into your sauna after a long day. The warmth envelops you, melting away stress. Yet, the joy of this experience can quickly diminish if your sauna heater isn’t functioning properly. Wiring an external digital controller for your 240V sauna heater is critical for optimal performance and safety. This guide will walk you through the steps, ensuring your sauna operates effectively.
With the right setup, you can easily regulate the temperature and enjoy a more comfortable sauna experience. You’ll learn about essential components, wiring techniques, and safety measures. After reading this, you’ll confidently wire your sauna heater.
iDOTODO

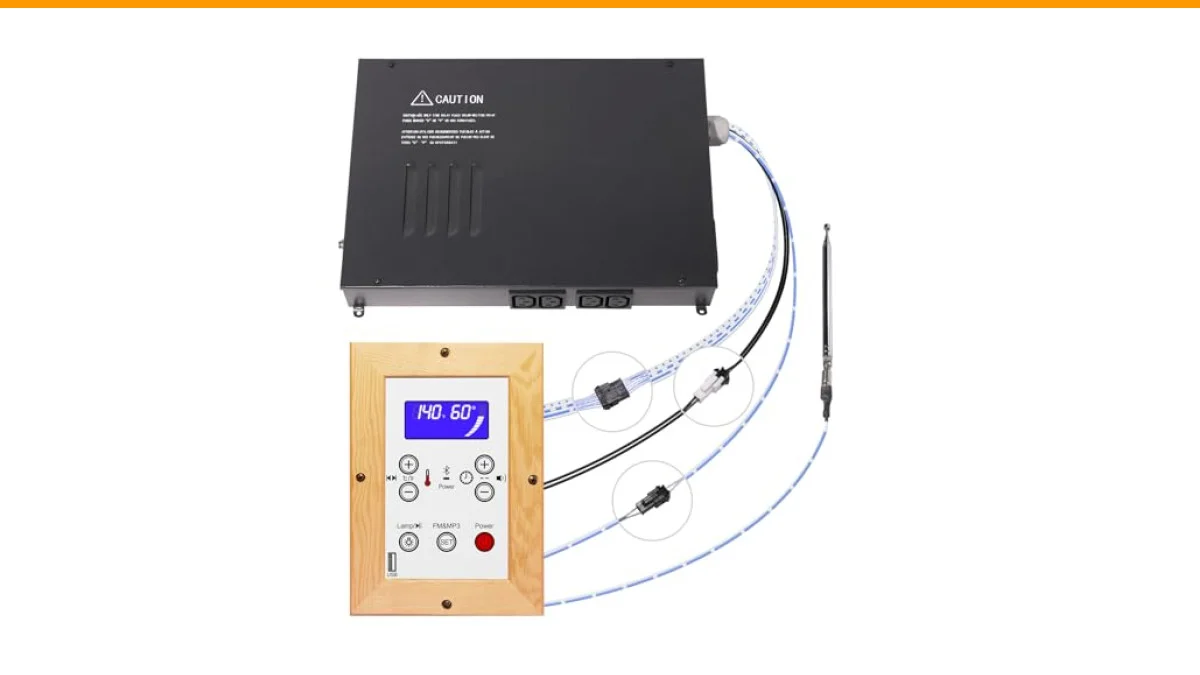

iDOTODO Infrared Sauna Control Box with Digital Panel, 110V, 99 Min | Up to 149°F; 30A/3000W System Rating; Temperature Sensor; Digital Panel; 3 Heater Connection Wires; Check Compatibility
- You will get a infrared sauna control box , a digital control panel, three connect wire for infrared suana heater and a temp senso…
- Power:110V
- Sauna Temp sensor and screws
A helpful product to consider is the iDOTODO Infrared Sauna Electrical Control Box and Digital Control Panel. This unit comes with a temperature control probe and is compatible with 110V systems. While this is not specifically a 240V device, understanding how to wire your sauna correctly will help you customize it further.
Understanding the Components
Before diving into the wiring process, familiarize yourself with the essential components:
- External Digital Controller: This device manages the sauna’s temperature and operation.
- 240V Sauna Heater: The heating element that warms the sauna.
- Wiring: Appropriate gauge wires to connect your heater and controller.
- Breaker Box: A safety feature that cuts off power in case of a malfunction.
- Temperature Sensor: Monitors the sauna’s internal temperature.
For a sauna to function efficiently, using high-quality components is vital. The external digital controller will allow you to set precise temperatures, enhancing your sauna experience.
Wiring Process Step-by-Step
Follow these steps to wire your external digital controller safely:
- Turn Off Power: Before starting any electrical work, ensure that the power supply to the sauna is completely shut off at the breaker box.
- Gather Tools and Materials: You’ll need the following:
- Wire stripper
- Screwdriver
- Electrical tape
- 240V rated wire
- Wire connectors
- Connect the External Digital Controller: Find the input terminals on the controller. Typically, these will be marked L1, L2, and N (neutral). Connect the wires from the power supply to the corresponding terminals. For L1 and L2, use a 12-gauge wire suitable for 240V connections.
- Wire the Heater: Connect the output terminals of the controller to the sauna heater. Again, ensure you match the L1 and L2 connections appropriately. Verify the heater’s specifications to confirm the correct wire gauge.
- Install the Temperature Sensor: This sensor is crucial for accurate temperature readings. Mount it according to the manufacturer’s instructions, usually on the wall at a mid-height level inside the sauna.
- Secure All Connections: Use wire connectors and electrical tape to secure all connections. This prevents any accidental disconnections or shorts.
- Restore Power: Once everything is connected and secured, turn the power back on at the breaker box. Test the system by setting the temperature on the controller and ensuring the heater activates.
Pro tip: Always double-check connections and ensure there are no exposed wires. This step is vital for safety.
Safety Considerations
Electrical work can be dangerous. Keep these safety tips in mind:
- Always work in a dry environment.
- Use insulated tools to prevent shocks.
- Consult a professional electrician if you’re unsure about any step.
Comparison of Wiring Approaches
| Method | Description | Pros | Cons |
|---|---|---|---|
| Using a Dedicated Circuit | Installing a dedicated circuit for the sauna heater. | Maximizes safety and performance. | Higher installation cost. |
| Wiring with Existing Circuit | Using an existing circuit to power the sauna. | Lower installation cost. | May not handle the load efficiently. |
| Professional Installation | Hiring a licensed electrician. | Ensures compliance with local codes. | Costly compared to DIY. |
| DIY Installation | Doing the wiring yourself. | Cost-effective and customizable. | Risk of improper wiring. |
Common Questions About Wiring Sauna Heaters
What gauge wire is needed for a 240V sauna heater?
Typically, a 10 or 12-gauge wire is suitable for 240V sauna heaters, depending on the heater’s amperage. Always check the manufacturer’s specifications.
Can I use a standard outlet for my sauna heater?
No, sauna heaters require a dedicated 240V circuit. Standard outlets do not provide enough power to safely operate these devices.
How do I know if my sauna heater is wired correctly?
Check for proper connections at the controller and heater. You can also use a multimeter to test voltage at the terminals. If unsure, consult a professional electrician.
Is it safe to wire my sauna heater myself?
If you have experience with electrical wiring and are familiar with local codes, it can be safe. However, hiring a licensed electrician is recommended for peace of mind.
What should I do if my sauna heater isn’t working?
First, check the breaker to ensure it hasn’t tripped. Then, inspect the wiring connections for any issues. If problems persist, consult a professional.
Final Thoughts
- Ensure you have all necessary tools before starting.
- Always turn off power before working on electrical systems.
- Secure all connections with appropriate materials.
- Test the system after installation to confirm functionality.
- Consult a professional if you’re uncertain about any steps.
- Choose high-quality components for better performance.
- Regularly inspect your sauna’s wiring for wear and tear.
